PTFE Coated Fiberglass Fabric for Heat Press Machine

0.13 mm Thickness Heat Resistant PTFE Coated Fiberglass Fabric. Request a free demo today.

Products Description

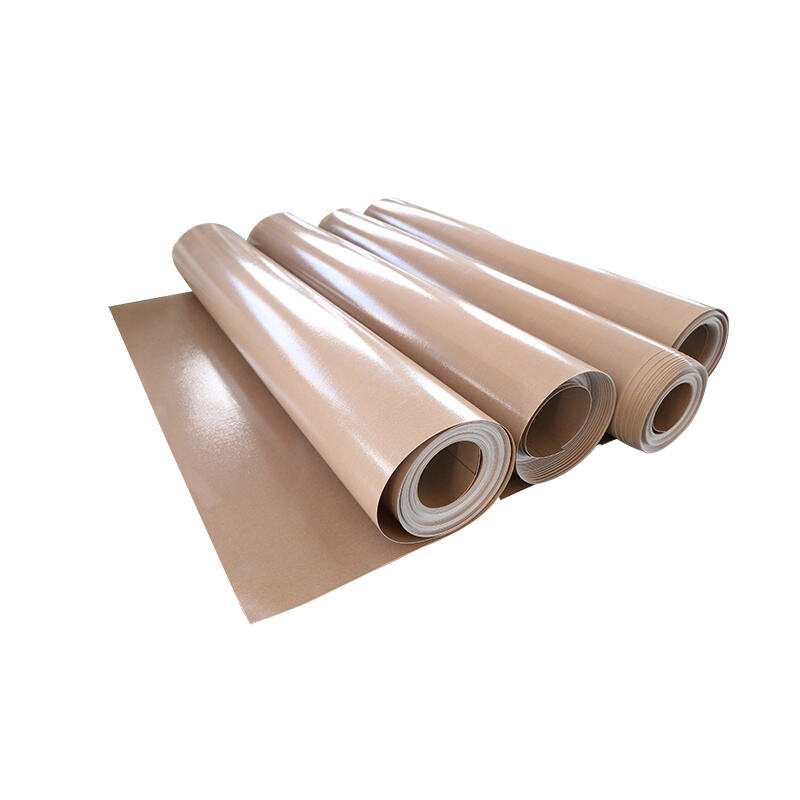

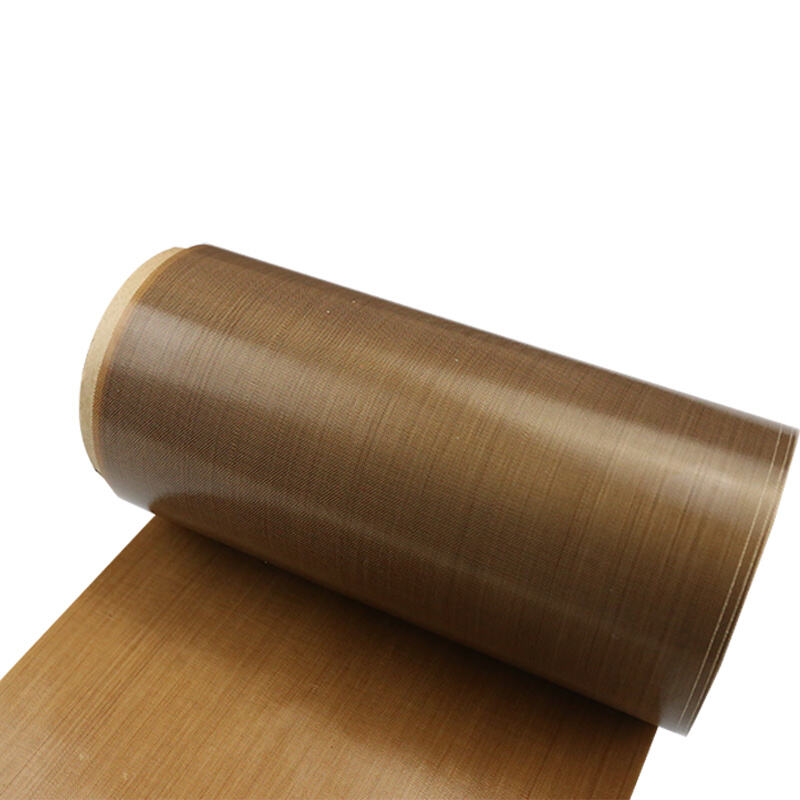

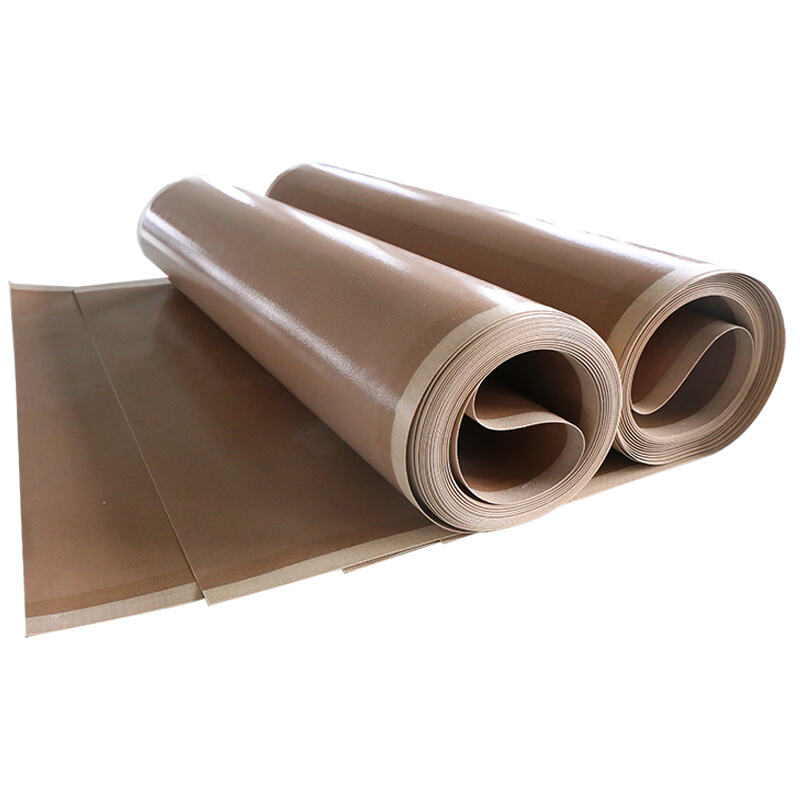

PTFE Coated Fiberglass Fabric

We use imported glass fiber as the material to make plain, twill, satin or other weaves into high-grade fiberglass cloth substrate, and then fully impregnated with unique process technology, coated with high-quality PTFE resin to produce PTFE high temperature fabric with multiple thicknesses and widths.

Model	Description	Thickness(mm)	Total welght(g/㎡)±5%	Tenslle Strength(N/5cm)±5%
Model	Description	Thickness(mm)	Total welght(g/㎡)±5%	warp	weft
9008AJ	brown	0.07	150	650	550
9008BJ	black,anti-static	0.07	160	460	420
9008J	white	0.07	150	600	500
9011AJ	brown	0.105	228	1150	1050
9013AJ	brown	0.125	250	1200	1100
9013BJ	black, anti-static	0.125	260	1050	850
9013J	white	0.125	250	990	900
9015AJ	brown	0.14	300	1350	1250
9018AJ	brown	0.17	350	1750	1550
9020AJ	brown	0.19	420	1800	1500
9025AJ	brown	0.23	490	2200	1750
9025BJ	black, anti-static	0.24	450	2000	1700
9025J	white	0.24	450	2000	1700
9030AJ	brown	0.28	620	2500	1800
9030B	black	0.28	580	2400	1700
9030BJ	black, anti-static	0.28	610	2400	1700
9030J	white	0.28	650	2600	1900
9035AJ	brown	0.32	620	3000	2100
9035BJ	black,anti-static	0.32	620	2800	2000
9036AJ	brown	0.35	690	3200	2200
9036BJ	black,anti-static	0.35	690	3000	2000
9040AJ	brown	0.39	770	3200	2100
9040BJ	black,anti-static	0.39	770	2800	1800
9045HD	black,anti-static	0.43	540	3000	2200
9045HD	grey,coating double sides	0.43	610	3500	2400
9045HD	grey, coating single sides	0.43	540	3500	2400
9055AJ	brown	0.53	1000	4200	3500
9055J	white	0.53	1000	3500	3000
9055BJ	black,anti-static	0.53	1000	3500	3000
9065AJ	brown	0.63	1180	4500	3800
9065BJ	black, anti-static	0.63	1180	4000	3200
9065J	white	0.63	1180	4500	3800
9080AJ	brown	0.78	1550	5500	4000
9080J	white	0.78	1550	5500	4000
9090AJ	white or brown	0.9	1600	6500	5500
9090BJ	black, anti-static	0.9	1600	6500	5500
9100AJ	brown	0.98	1250	6000	5000

Core Advantage

(1) Stable dimension, high intensity, elongation coefficient less than 5%.

(2) Good temperature resistance, continous working temperature -70～260℃.

(3) Low coefficient of friction and dielectric constant, high insulation property.

(4) Non-stick, easy to clean stains and adhesive on the surface.

(5) Good chemical resistance, it can resist almost all of chemical, acids, alkalis, and salt, it is fireproof, aging resistance.

Specification

Key attributes
Application	Blind Place of Origin		Jiangsu,China
Model Number	9013AJ Brand Name		VEIK
Alkali Content	Alkali Free Processing Service		Welding, Ctting
StandingTemperature	-70 to 260℃ Surface Treatment		PTFE Coated
Weave Type	Plain Woven Weight		250g/m2
Width	1m or 1.2m or as request Yarn Type		E-Glass
Material	ptfe coated fiberglass fabric	Raw Material	Fiberglass cloth
Coating	Ptfe Double Sides	Basic Fabricweight	104g/m2
Nominal Thickness	0.13mm Tensile strength		1200/1100N/5cm
color	brown, black, white Application		industrial use
MAX width	1.2m or customized

Application Scenarios

1. Gasket for heating food, baking mat, microwave oven gasket;

2. Anti-adhesive lining, gasket, mask, etc.;

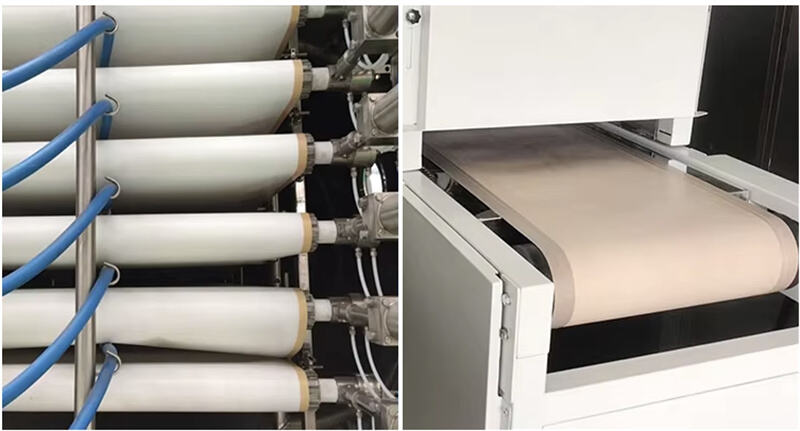

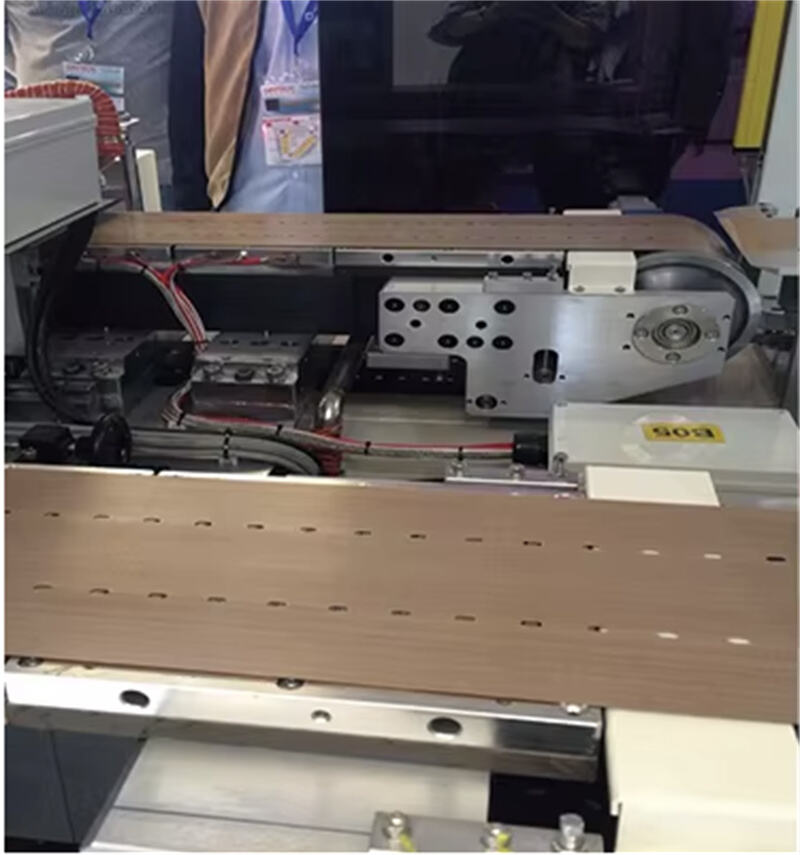

3. According to different specifications, coated cloth can be used for conveyor belts of various drying machines, adhesive tapes, sealing tapes, etc.

4. It is used for corrosion protection of various petrochemical pipelines, electrical and electronic insulation, high temperature-resistant cladding materials, environmental desulfurization of power plant exhaust gas, etc.
